Vertical Lathes

The vertical format is ideal for round and disc-shaped workpieces, as is allows for easier clamping, better swarf removal and takes up less space. The one-piece cast Meehanite machine beds are excellent at absorbing vibrations and provide thermal management which reduces thermal expansion to a minimum. This means that, even during continuous operation, a consistently high level of precision and surface quality is maintained when machining demanding workpieces.

The VT-450 and VT-650 turning centres can be ordered with their spindles fitted either on the left-hand or the right-hand side, so that they can be seamlessly connected and automated.

The VT-950+ and VT-1150+ are designed for the cutting of particularly high volumes and/or tough materials. For workpiece diameters of 2 m and above, a portal-based version of the VT machines is available (carousel lathe).

Extremely robust vertical lathes for continuous use

The lathes with horizontal spindles are designed for continuous operation. Heavy monolithic cast iron beds with box guideway based travelling columns guarantee a stable cutting process. Mirror-image models are available, allowing two machines to be joined together. For workpiece diameters of 2 m and above, a portal-based design is available (carousel lathe).

VT-450 - Front side
Vertical turning centre with Ø305 mm (12 inch) chuck
Safe, durable, efficient - a robust turning centre for continuous operation: For many well-known manufacturers, the VT-450 is the tool of choice for the machining of brake discs, brake drums, hubs and...
Box guide ways
Gear spindle
Driven tools
VT-650 - Front side
Vertical turning centre with Ø450 mm (18 inch) chuck
Safe, durable, efficient - a robust turning centre for continuous operation: For many well-known manufacturers, the VT-650 is the tool of choice for the machining of brake discs, brake drums, hubs and...
Linear guideway
Box guide ways
Gear spindle
Driven tools
Extra tool magazin
VT-950+ - Front side
Vertical turning centre with box guideways for chuck sizes of Ø600 - 800 mm
Outstanding stability! Thanks to its heavy and monolithic cast Meehanite bed, the VT-950+ is extremely stable. Building on this solid foundation, these vertical lathes combine high performance main an...

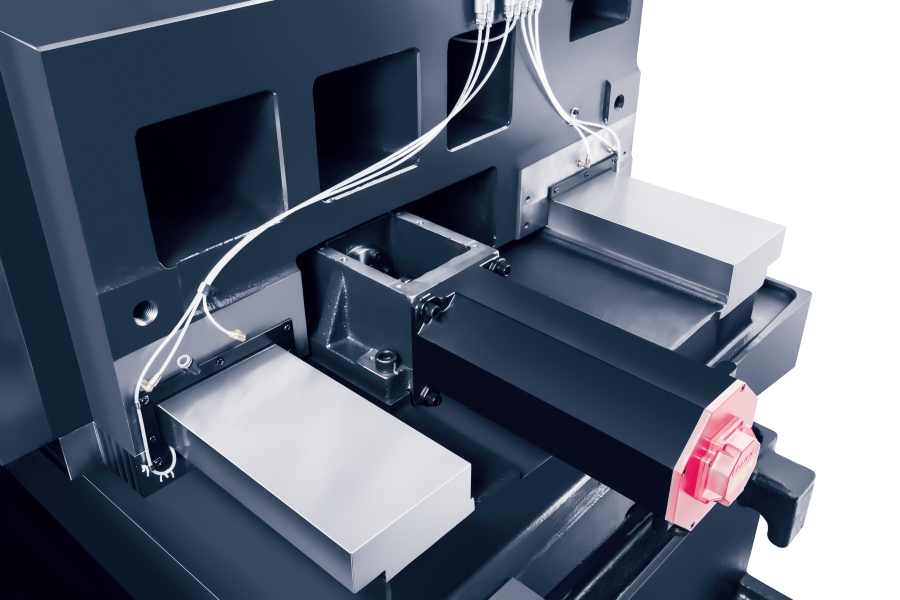

Box guide ways
Gear spindle
Driven tools
Extra tool magazin
VT-1150+ - Front side
Vertical turning centre with box guideways for chuck sizes of Ø800 - 1270 mm
Outstanding stability! Thanks to its heavy and monolithic cast Meehanite bed, the VT-1150+ is extremely stable. Building on this solid foundation, these vertical lathes combine high performance main a...
Box guide ways
Gear spindle
Driven tools
Extra tool magazin
VT-2000 - Front side
Vertical turning centre for heavy duty cutting
High-torque main drive for heavy duty cutting Table diameter: 2,032 mm (80 inch), manual Drive power: 75/60 kW with 49,836 Nm Extremely rigid machine construction Monolithic constru...
Box guide ways
Driven tools
Extra tool magazin
