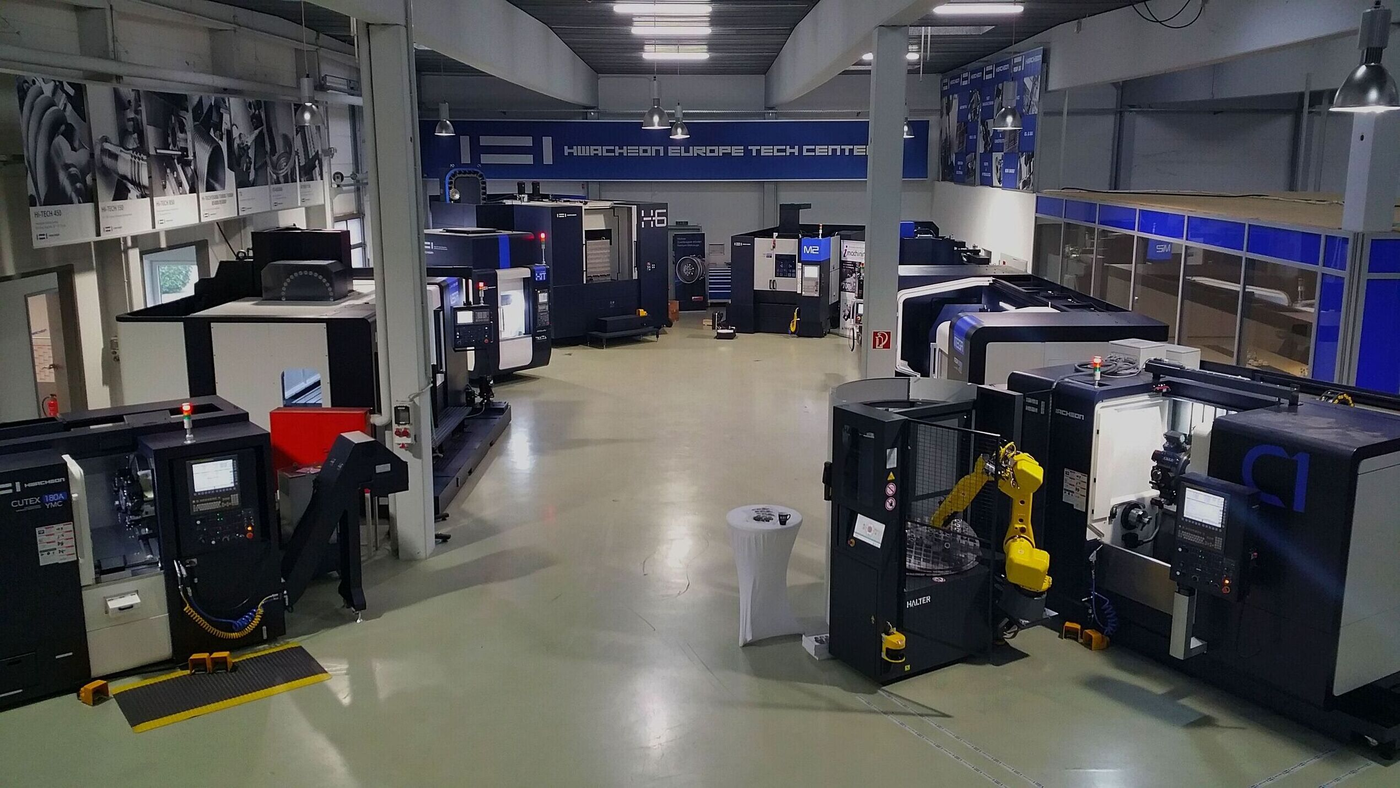

Showroom in HQ Bochum, Germany

Stock and Demonstration Machines

Quickly available lathes and machining centers from HWACHEON Europe.

Request your individual machine offer on this page or arrange a demonstration appointment in Bochum...







info@hwacheon-europe.com




+49 (0) 234 912 816 - 0


Reachability:
Monday - Thursday: 8:00 a.m. - 4:30 p.m. | Friday: 8:00 a.m. - 3:00 p.m.

Available ex stock

CUTEX-160B MC (Fanuc 0i Plus)

Configuration
Coolant / Chip disposal (Hwacheon)
  • Hinge -Type Chip Conveyor with Bucket
  • Coolant tank and pump
  • High Pressure Coolant Pump 6 Bar
Measuring / Monitoring
  • Tool Measurement inside the Machine, manual
Clamping
  • Foot Switch to clamp and unclamp the chuck
  • 200 mm / 8 inch - 3 jaw Hydraulic Chuck (Seoam)
Automation (machine side)
  • Parts Catcher
Shaft maching
  • Tailstock and Quill
Bar machining
  • PLC-preparation for Barfeeder Interface
Fanuc Options
  • Fanuc 0i-TF PLUS
Main Drive (lathes)
  • Main Drive with 4 500 rpm (15 / 11 kW)
Turret
  • Turret with Driven Tools with 5 000 rpm (3,7 / 2,2 kW)
Inquiry
Available ex stock

CUTEX-180BL (Siemens 828D)

Configuration
Bar machining
  • PLC-preparation for Barfeeder Interface
Siemens options
  • Siemens 828D with 15" Display
Main Drive (lathes)
  • Main Drive with 4500 rpm
Coolant / Chip disposal (Hwacheon)
  • High Pressure Coolant Pump 6 Bar
  • Chip Conveyor, sideways (Hwacheon)
  • Coolant tank and pump
Measuring / Monitoring
  • Tool Presetter
Clamping
  • Foot Switch to clamp and unclamp the chuck
  • 200 mm / 8 inch - 3 jaw Hydraulic Chuck (Seoam)
Shaft maching
  • Hydraulic Tailstock
Inquiry
t.b.a.

Hi-TECH 450BL YSMC (Siemens 828D)

Configuration
Automation (machine side)
  • Parts Catcher
Siemens options
  • Siemens 828D with 15" Display
Shaft maching
  • Programmable Tailstock and Quill
  • Tailstock
Main Drive (lathes)
  • Main Drive with 2500 rpm (22 / 18,5 kW)
Y-Axis (lathe)
  • Y-Axis with ±60 mm Stroke
Bar machining
  • PLC-preparation for Barfeeder Interface
Sub spindle (lathe)
  • Sub Spindle with 4 000 rpm STD
  • Sub spindle upgrade (12.8 kW)
Turret
  • Turret with Driven Tools with 5 000 rpm (9,4 / 3,7 kW) STD
Coolant / Chip disposal (Hwacheon)
  • High Pressure Coolant Pump 15 Bar
  • Hinge-Type Chip Conveyor inclusive Bucket
  • Coolant tank and pump
  • Inline filter interface(Without Double cartridge)
Measuring / Monitoring
  • Tool Measurement inside the Machine
Clamping
  • Spindle Brake of the C-Axis
  • Foot Switch to clamp and unclamp the chuck
  • 300 mm / 12 inch - 3 jaw Hydraulic Chuck (Seoam)
  • One Set of Soft Jaws & One Set of Hard Jaws - 12
Inquiry
Available ex stock

VESTA-1000+ 12k (Siemens 828D)

Configuration
Siemens options
  • Siemens 828D with 15" Display
Spindle and drive (milling)
  • Milling spindle with 12,000 rpm (20,9 / 10,2 kW), Built-Out
Tool magazin
  • ATC with 30 Tools (BBT-/BT-40)
Coolant / Chip disposal (Hwacheon)
  • Chip Conveyor (back type)
  • Coolant Through Spindle (CTS) 30 Bar
  • Air Blower
  • Screw Conveyor for Chip Removal from the Working Area
  • External coolant nozzle on the spindle
Inquiry
Deliverable in 6 weeks

VESTA-1300B+ 6k (Fanuc 0i Plus)

Configuration
Tool magazin
  • ATC with 30 (BBT-/BT-40) or 24 (BBT-/BT-50) Tools
  • ATC with 24 Tools (BBT-/BT-50)
Coolant / Chip disposal (Hwacheon)
  • Chip Conveyor
  • Coolant Through Spindle (CTS) 30 Bar
  • Air Blower
  • Screw Conveyor for Chip Removal from the Working Area
  • External coolant nozzle on the spindle
Rotary axis
  • 4th axis interface preparation (PLC)
Fanuc Options
  • Fanuc 0i-MF PLUS
  • OPTIMA (Cutting Feed Optimization System)
  • HECC (Hwacheon Efficient Contour Control system)
  • Network Interface RJ45
  • Helical Interpolation
  • HTDC (Hwacheon Thermal Displacement Control System)
Spindle and drive (milling)
  • Surchage for BBT tool holder (EU standard)
  • Milling spindle with 6,000 rpm (18.5 / 15 kW), gear-type
Inquiry
